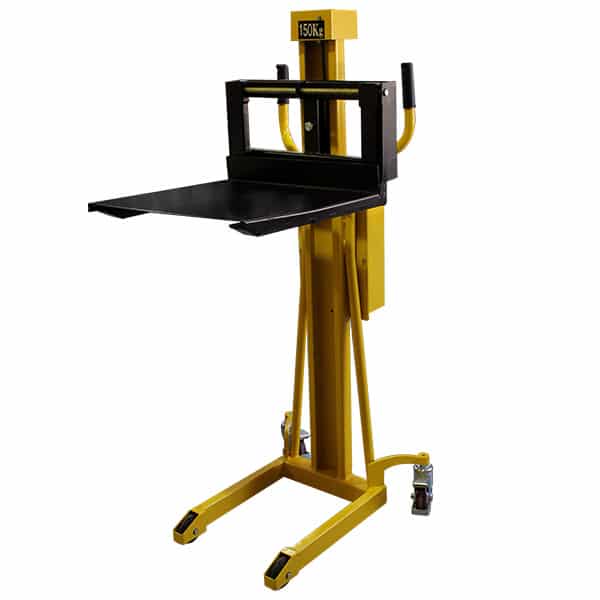

Mini Winch Stacker | FSR013

This compact manual fork stacker is designed for lifting and positioning light loads where powered equipment is unnecessary or impractical. It handles up to 150kg and uses a hand-operated winch with a wire cable lift to raise loads in a controlled way. Fork height adjusts from 70mm up to 1100mm, making it suitable for lifting onto benches, into low racking, or aligning items for packing and assembly tasks. The narrow frame helps with access through standard doorways and along tight aisles in workshops, storerooms, and back-of-house areas.

The adjustable fork width (132–520mm) allows the unit to suit a range of smaller pallets, crates and bins, while the 500mm fork length supports compact loads without taking up unnecessary floor space. A 495(L) × 530(W)mm platform provides an additional option for handling items that don’t sit neatly on forks. Four swivel castors improve manoeuvrability in confined spaces, and integrated wheel brakes help keep the stacker stable while lifting, lowering or loading. Manual operation means it can be used without power and suits sites that want straightforward handling with minimal setup.
