24 X 12.00-12 Pneumatic Mower Wheel With Ford 5 Stud Pattern Rim And Premium Turf Tyre (PN24-12-12FRD)

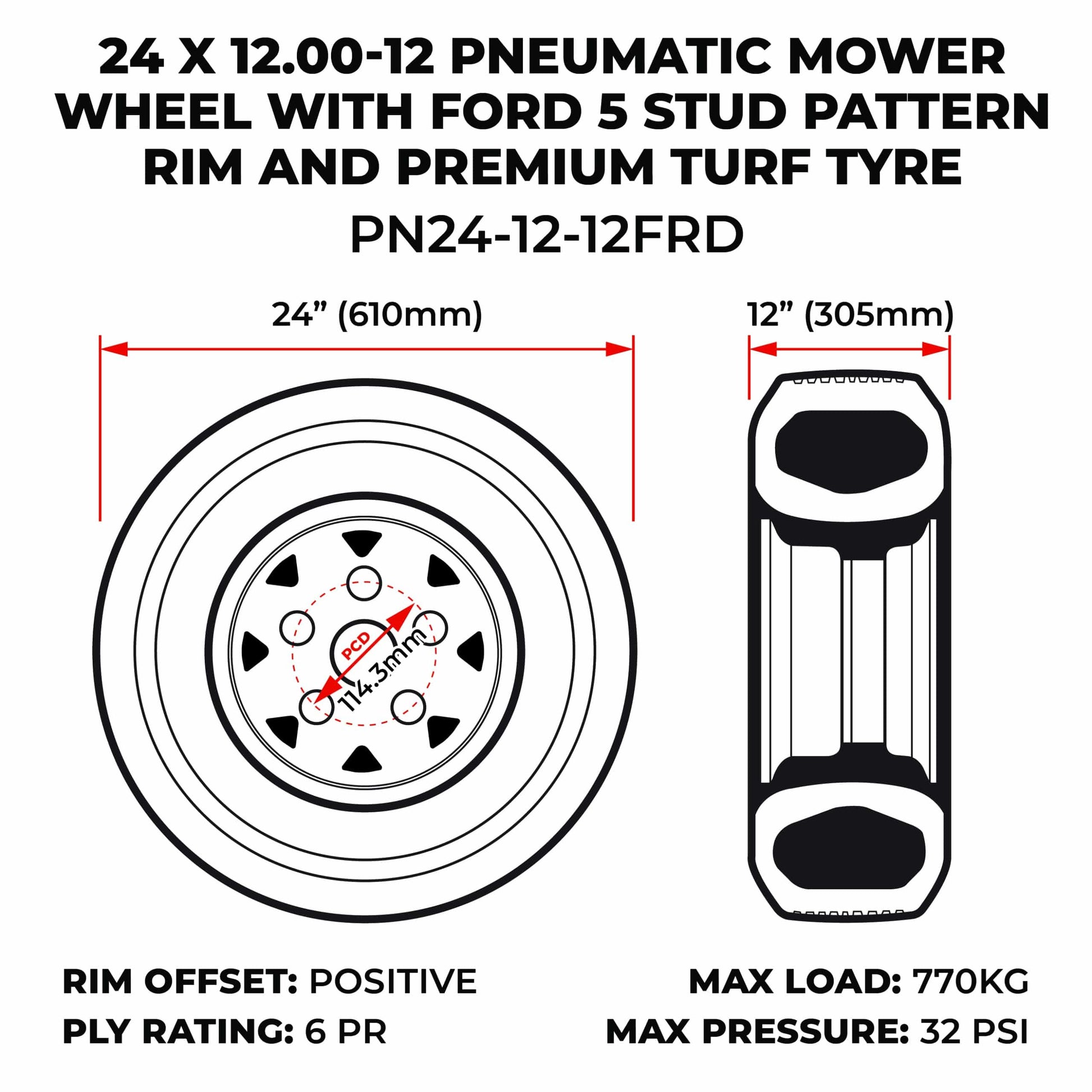

Size	24 X 12.00-12
Tyre to suit	TY24-12-12TUR
Stud Pattern	FORD 5 ON 114.3 mm
PCD. Rim Offset	1" Positive
Max pressure	32 psi
PLY Rating	6 PR

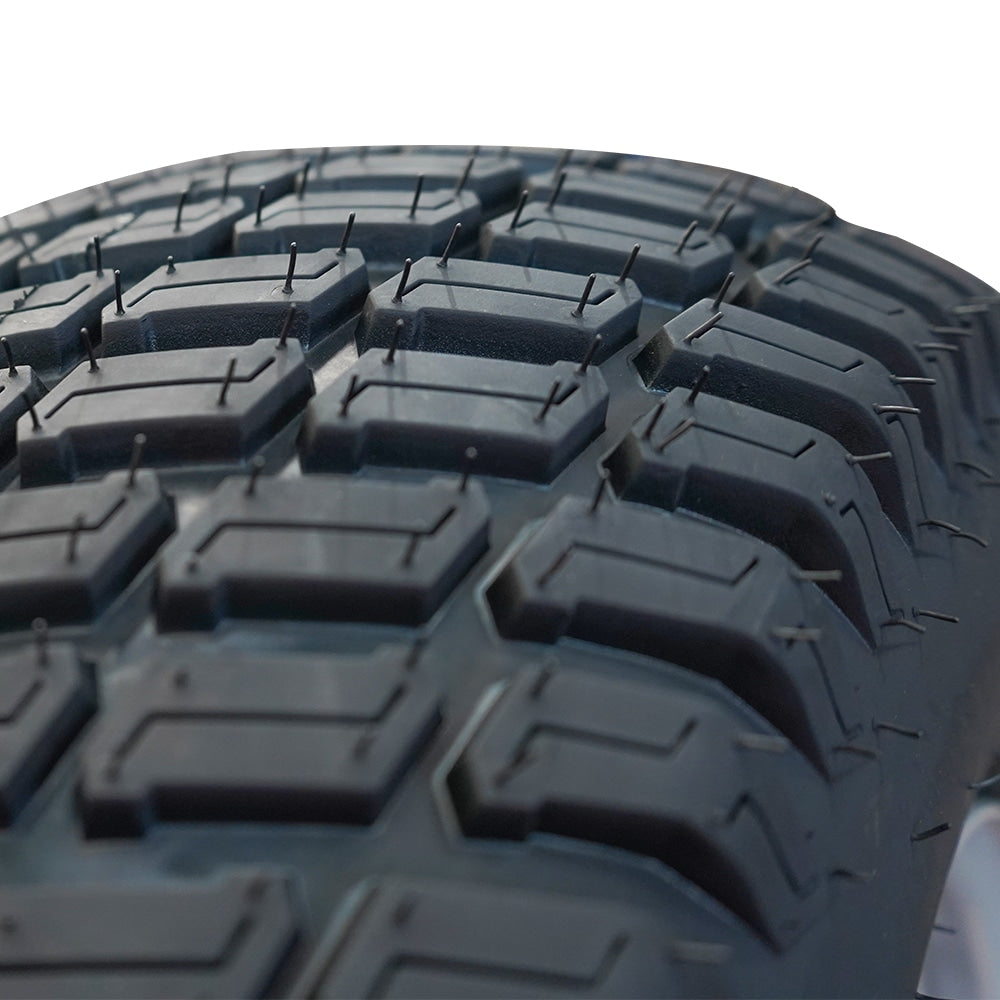

Tread Pattern	Premium Turf
Maximum Load	771 kg

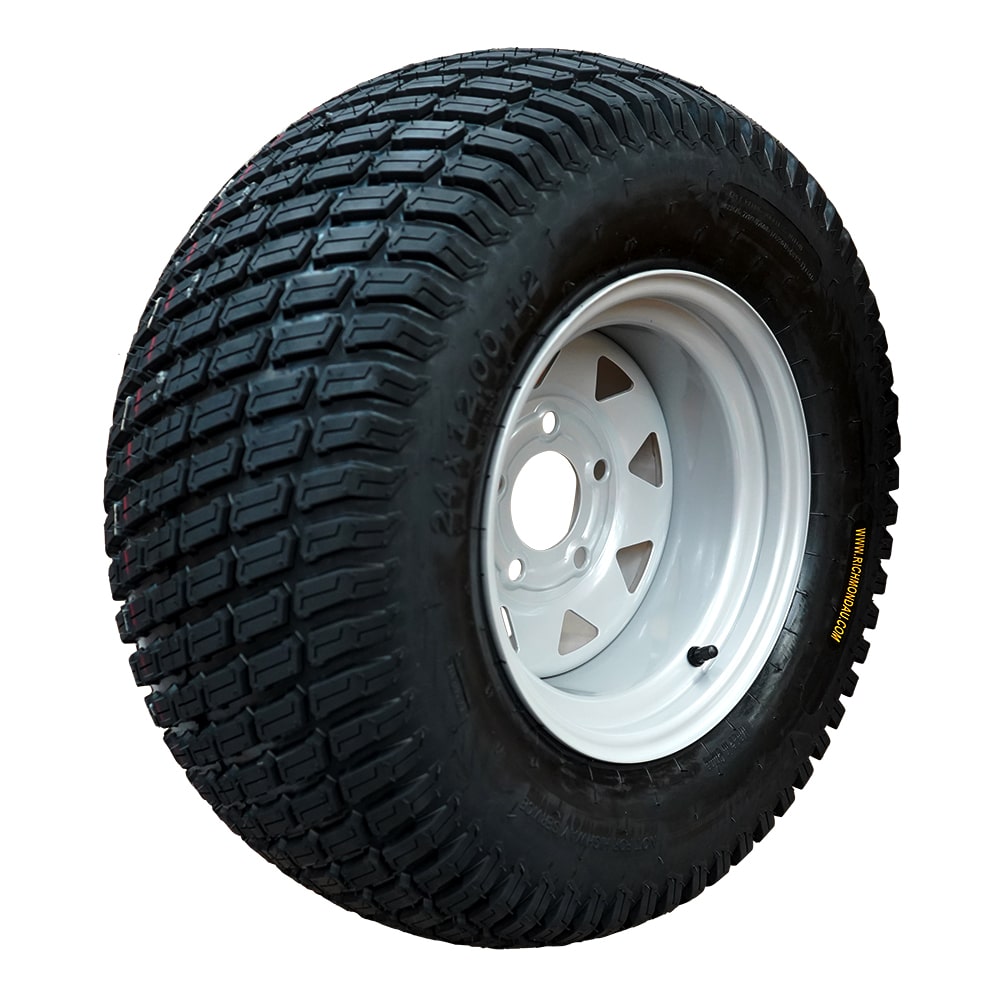

  24″ x 12.00″-12 Pneumatic Mower Wheel with Ford 5-Stud Rim and Premium Turf Tyre (PN24-12-12FRD) This heavy-duty turf wheel assembly is designed to deliver superior flotation, grip, and load capacity for high-performance turf and agricultural equipment. Featuring a wide 24×12.00-12 premium turf tyre fitted to a Ford 5-stud steel rim (114.3mm PCD) with a 1″ positive offset, this wheel ensures secure rear drive fitment on a variety of ride-on mowers and utility machines. The wide tread footprint and 6-ply rating help minimise ground compaction on soft or grassy terrain while offering the strength needed for heavy-duty use. With a high load capacity of 770 kg and a max pressure of 32 psi, this assembly is ideal for equipment operating in large-scale turf environments, including parks, sports fields, and agricultural estates. Delivered as a complete wheel assembly with tyre and rim installed, this is a practical bolt-on solution for machines requiring a Ford 5-stud mounting pattern.

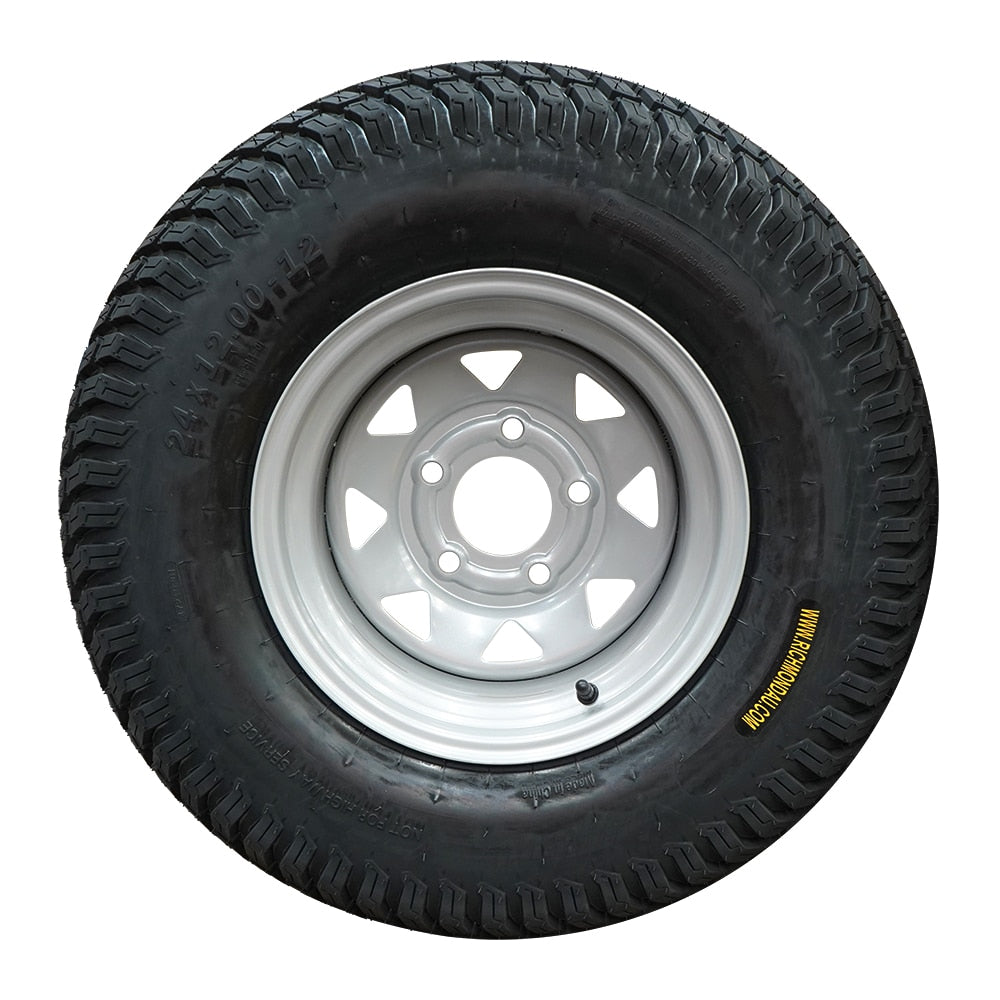

Ford 5-Stud Mounting Pattern

Widely used across a range of equipment a Ford 5-stud mounting pattern features 5 bolt holes on a 114.3mm (4.5”) circle. The additional mounting point offers improved strength and load distribution compared to 3 or 4-stud setups. This mounting pattern is commonly found on heavier duty mower wheels, utility and ground support equipment as well as agricultural & greens keeping equipment.

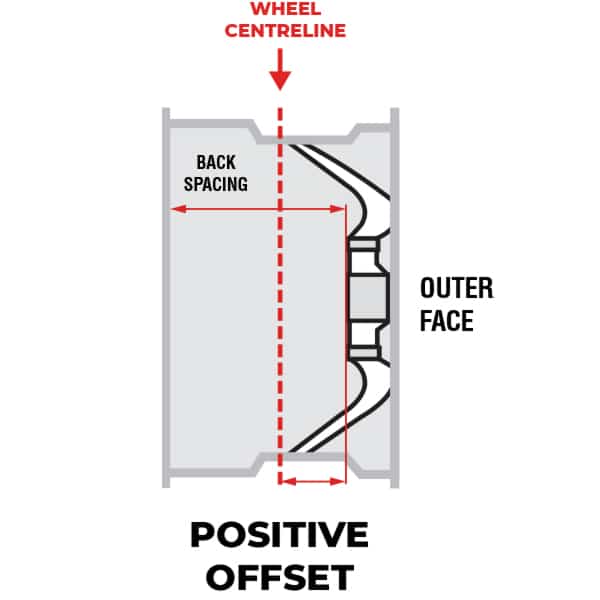

Positive Offset Rim

A positive offset on a wheel means that the mounting position of the wheel is located closer to the outside face of the rim. This moves the wheel and tyre further inward under the frame of equipment when mounted. Providing a more compact mounting position. A negative offset means the mounting point is located closer to the inside (interior side) face of the wheel.
