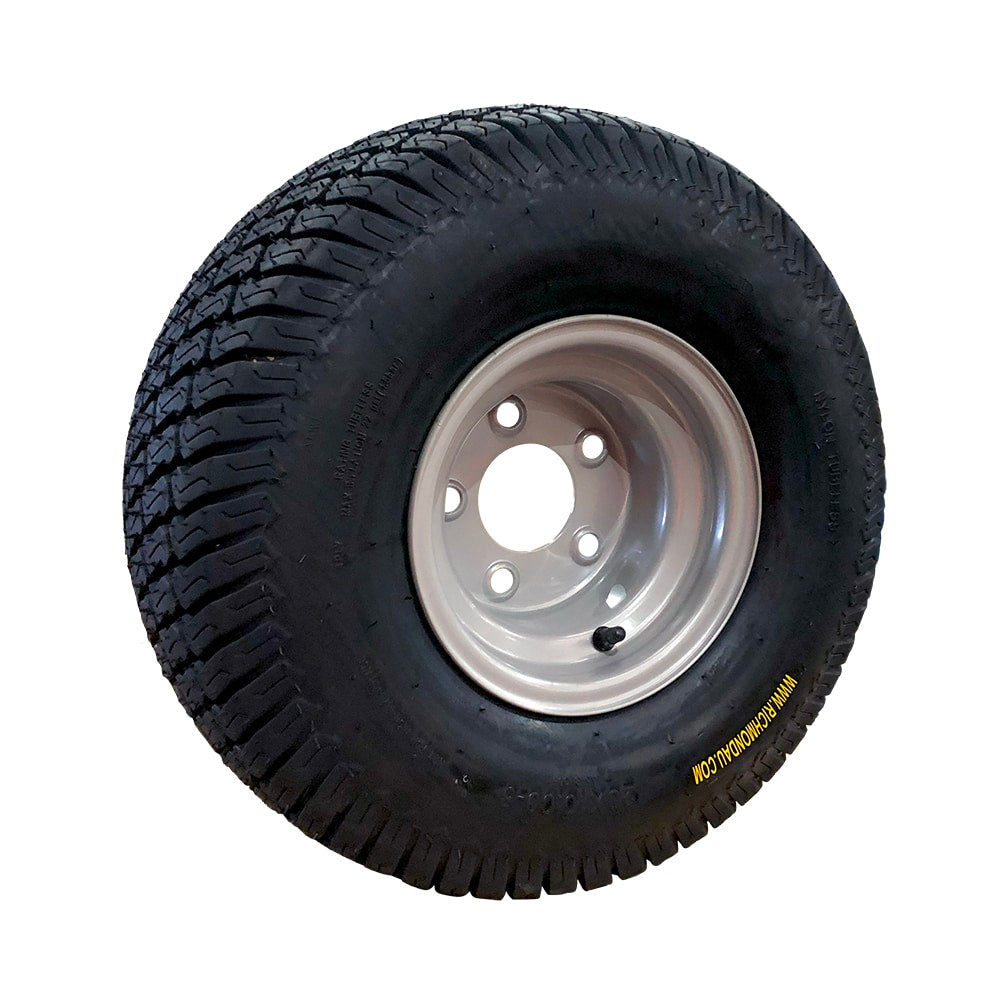

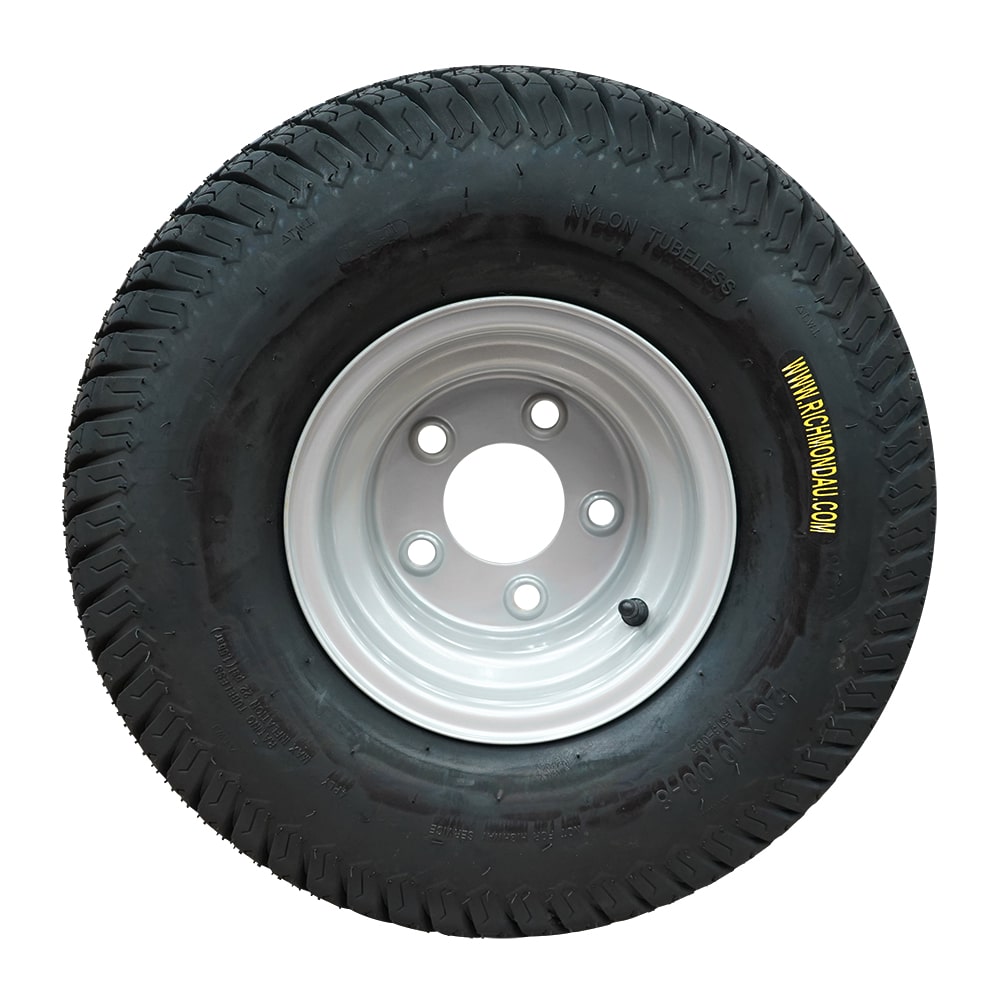

20 X 10.00-8 Pneumatic Wheel With Ford 5 Stud Pattern Rim And Premium Turf Tyre (PN20-10-8FRD)

Rim	RI08X700FD
Size	20 X 10.00-8
Tyre to suit	TY20-100-8TUR
Tube To Suit	TBE20X10TR13
Stud Pattern	FORD 5 ON 114.3 mm
PCD. Rim Offset	Zero
Max pressure	22 psi
PLY Rating	4 PR

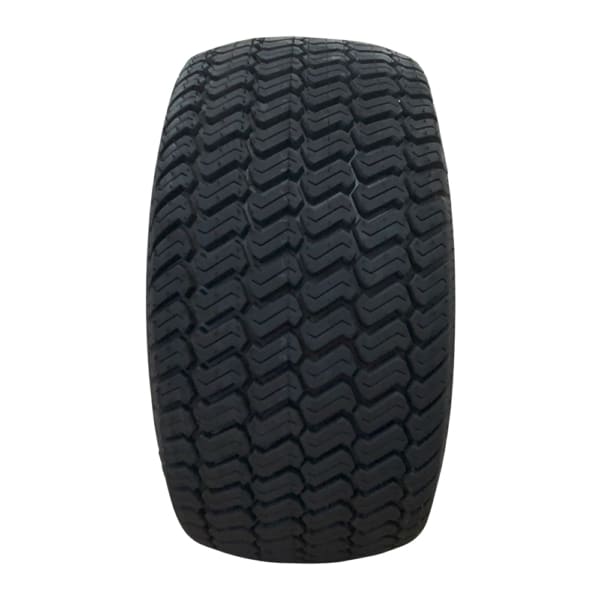

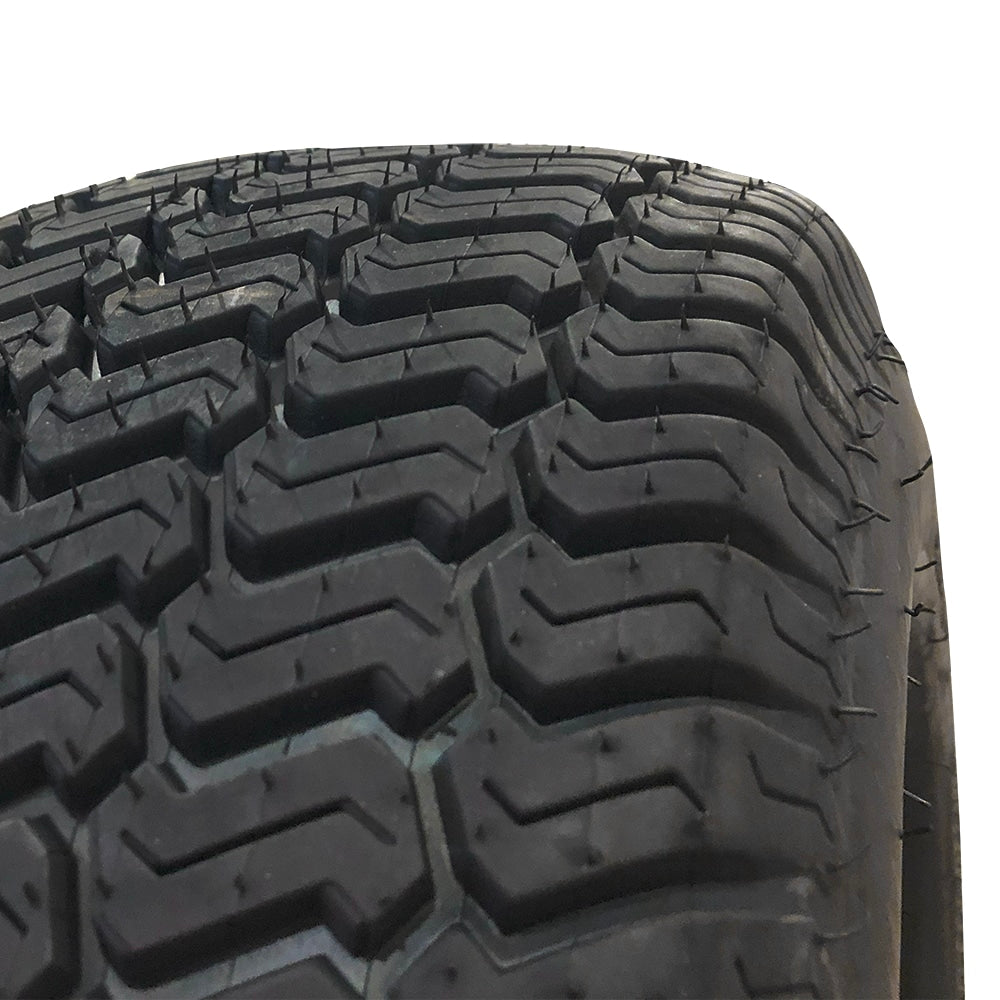

Tread Pattern	Premium Turf
Maximum Load	345 kg

  20″ x 10.00″-8 Pneumatic Wheel with Ford 5-Stud Rim and Premium Turf Tyre (PN20-10-8FRD) This premium turf wheel assembly is engineered for rear-drive use on ride-on mowers and groundcare equipment. Featuring a 20×10.00-8 turf tread tyre mounted on a Ford 5-stud steel rim (114.3mm PCD), it delivers excellent stability and wide ground contact for reduced surface compression during operation. With a zero rim offset, this assembly provides a balanced and centred fit—ideal for equipment where even weight distribution and minimal ground disturbance are essential. Its 4-ply rated construction ensures durability across daily use, and the assembly is rated to a maximum pressure of 22 psi with a load capacity of 345 kg. Supplied as a full unit with tyre and rim included, this wheel is well suited to agricultural and turf care applications requiring a Ford 5 Stud Pattern compatible mounting solution.

Ford 5-Stud Mounting Pattern

Widely used across a range of equipment a Ford 5-stud mounting pattern features 5 bolt holes on a 114.3mm (4.5”) circle. The additional mounting point offers improved strength and load distribution compared to 3 or 4-stud setups. This mounting pattern is commonly found on heavier duty mower wheels, utility and ground support equipment as well as agricultural & greens keeping equipment.

Zero Offset Rim

A zero offset wheel means that the mounting point of the hub is in the centreline of the rim. This means the wheel is mounted equally spaced and balanced between each side of the rim for maintaining a balanced load distribution across the hub. This type of offset is common in rear golf buggy wheels, trailers, and turf equipment.
