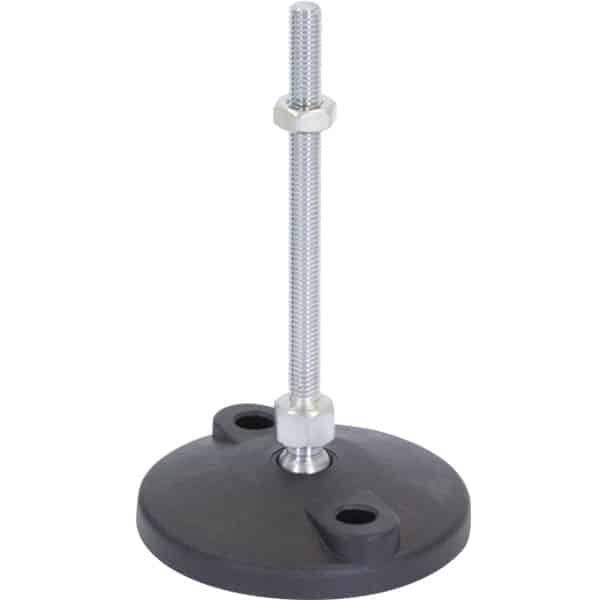

M8 Stainless Steel Bolt Down Adjustable Levelling Feet | LVR8008100BSS

$20.44 inc GST   ($18.58 ex.GST)

Order Code: LVR8008100BSS

Load Capacity: 350kg

Thread: M8

Thread Length: 100mm

Base Diameter: 80mm

Base Height: 18mm

Bolt Hole Diameter: 10mm

Distance Between Bolt Hole Centers: 56mm
Richmond Wheels and Castors Logo

Leveling feet are used to provide a level, stable base for tables, machinery or equipment. These adjustable feet help ensure your table, machine etc. is mounted correctly and levelled on uneven surfaces.

Adjustable feet also help to prevent tipping, vibration, wear and noise.

Bolt down levelling foot with a maximum load capacity of 350kg. The diameter of the base is 80mm and the thread is M8. The thread length is 100mm and the base length is 18mm making the overall height 118mm. This foot is designed to be bolted to the floor using 2 x 10mm bolts.

Bolt down leveling feet perform the same as fixed stem leveling feet – perfect for adjusting the height of an object, or leveling it, across both even and uneven surfaces. But bolt down adjustable feet also have the ability to be permanently bolted in place, eliminating movement and further reducing vibration.

What objects are we talking about? Here are some examples of different uses for leveling feet:

  • Electronic equipment
  • Enclosures
  • Conveyors
  • Cabinets
  • Furniture
  • Shelving
  • Machinery
  • Tables
  • Work benches
  • Display racks

All bolt down leveling feet feature a glass filled nylon base. Glass filled nylon is resilient, resists hard impacts, and is very durable and resistant to oils, greases and cleaning agents. The addition of glass fibres to nylon also increases overall strength when compared to regular nylon. This includes the ability to survive cold temperatures – great for refrigerated environments.

AdMerch only stock the best – everything here is designed to last the test of time in a heavy duty environment, and is regarded as the best in its field.

We deliver nationwide – so no matter where you’re from – Melbourne, Sydney, Adelaide, Perth, Brisbane or anywhere else in Australia – we have a customised solution for your business or home.

Don’t compromise – only choose the best and most reliable to get maximum value for money, and peace of mind.


Leveling Feet – Bolt Down Adjustable Feet

AdMerch have a big range of bolt down leveling and adjustable feet.

The load capacities in this range include 350kg, 500kg, 800kg, and massive 1,000kg options.To ensure maximum safety when choosing leveling feet – divide the object weight by the number of feet required. Then you will have the load capacity needed per leveling foot.

Thread sizes in this range include – M8, M10, M12, M16, M20.

We also have an incredibly huge range of threaded inserts – the perfect solution for mounting leveling feet to hollow tubes and pipes. Such tubes and pipes can be frequently found on conveyor frames and aluminium profiles.
